Our optical probe delivers exceptional performance with a specialized optical design for high collection efficiency, ensuring precise measurements even in challenging conditions. Built to endure extreme temperatures, high pressure, and corrosive environments, it is ideal for demanding industrial applications. Customizable in interface, length, and material, it adapts seamlessly to your monitoring needs.
Paired with our versatile flow cell, which supports multiple materials and optimized optical paths, this system guarantees superior signal capture. Compatible with various pipeline interfaces, it excels in high-temperature, high-pressure, and corrosive systems, offering reliable sealing and easy integration.
Product table list and parameters:
| / | PR100 | PR200 | PR201 | PR202 | PR300 |
| / | Optical Probe | LAB Immersion Probe | LAB Immersion Probe | LAB Immersion Probe | Industrial Immersion Probe |
| Probe Tube Material | 304 stainless
steel | C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional | 316L stainless steel, resistant to SIP/CIP
sterilization | C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
| Outer Diameter | 10mm | 10mm | 16mm | 12mm | 60mm
Support customizing |
| Probe Tube Length | 80mm | 350 mm
Support customizing from 100 mm ~ 350 mm | 270 mm
Support customizing from 100 mm ~ 1000 mm | 120 mm
Support customizing from 120mm ~ 320 mm | 1.9 m
Support customizing from 1 m ~ 3 m |
| Spectral Range | 200 ~ 3900 cm-1 (532 nm or 785 nm excitation wavelength)
230 ~ 3100 cm-1 (1064 nm excitation wavelength) |
| Sample Type | Any sample type | L (clear liquid) or S (opaque or turbid liquid) or C (slurries or semi-solids) |
| Fiber Optic Cable | 1.3 m PVC jacketed as standard, 3 m or 5 m length are optional | 5 m as standard ,10 m, 50 m or 100 m length are optional; PVC jacket as standard, TPU or silica gel jacket are optional | 50 m
Support customizing |
| Temperature Range | 0ºC ~ 100 ºC | -40ºC ~ 200 ºC | -40 ºC ~ 150 ºC | -30 ºC ~ 200 ºC | -60 ºC ~ 200 ºC |
| Maximum Pressure | ambient condition | 30 MPa | 30 MPa | 1 MPa | 30 MPa |
| Corrosion Resistance | Not resistant to corrosive liquid | Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution | Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution | pH range: 1-14 | Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic
solution |
Optical Fiber
Configuration | 100 μm excitation fiber, 200 μm collection fiber, N.A. 0.22 |
| Filter Efficiency | OD6, customizing is available |
| Connection Interface | FC and SMA |
Technical Highlights:
- A variety of materials are available as options. Flow cells are suitable for processes under high temperature, high pressure, or with strong acid/alkali,etc.
- With different specifications of interface, flow cells can be coupled with pipelines of different specifications.
- Special optical design to maximize collection efficiency and Raman intensities.
- Good sealing and convenient connection.
Applications:

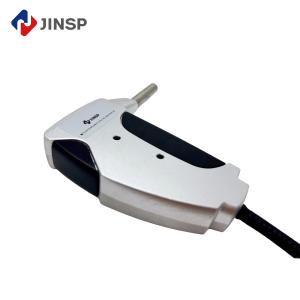

The PR100 Raman probe is a compact, lightweight solution for offline laboratory analysis, supporting 532 nm, 785 nm, and 1064 nm excitation wavelengths. Ideal for liquid and solid sample measurements, it integrates seamlessly with sample chambers or microscopes for Raman micro-spectroscopy. Additionally, it can be paired with flow cells and side-view reactors for real-time reaction monitoring, making it a flexible tool for both routine lab work and process control.
The PR200/PR201/PR202 series offers versatile in-situ monitoring solutions for small-scale laboratory reactions. These immersion probes can be directly inserted into reaction vessels, providing real-time process analysis. A specialized design variant minimizes interference when monitoring stirred or suspended solutions. With multiple material options available, these probes excel in extreme conditions and challenging sampling scenarios. The PR200 features compact interfaces, while PR201 accommodates medium-sized connections. The PR202 model is particularly valuable for bio-fermentation applications, featuring a detachable probe section for sterilization (PG13.5 interface).
The PR300 series delivers robust performance in demanding industrial settings, engineered to operate reliably under extreme temperature and pressure conditions. Featuring a protective design that safeguards optical components, these probes utilize a flanged connection system ideal for reactor vessel monitoring. Their corrosion-resistant construction meets the stringent requirements of challenging production environments, with customizable flange dimensions to suit specific installation needs.
Support and Services:
- The Raman Probe product technical support and services include:
- Assistance with product installation, setup, and calibration
- Troubleshooting and diagnosis of any issues or errors
- Regular maintenance and cleaning recommendations
- Access to software updates and upgrades
- Product training and education
- Technical consultation with experienced support staff
FAQ:
Q: What is the minimum order quantity for the JINSP Raman Probe ?
A: The minimum order quantity for the JINSP Raman Probe is 1PC.
Q: What is the price of the JINSP Raman Probe?
A: The price of the JINSP Raman Probe is negotiable.
Q: What payment terms are accepted for the JINSP Raman Probe ?
A: The accepted payment terms for the JINSP are T/T and Western Union.
Q: What is the delivery time for the JINSP Raman Probe?
A: The delivery time for the JINSP Raman Probe is 40-70 working days.
Q: Where is the JINSP Raman Probe manufactured?
A: All Raman Probe is designed and manufactured in China.
